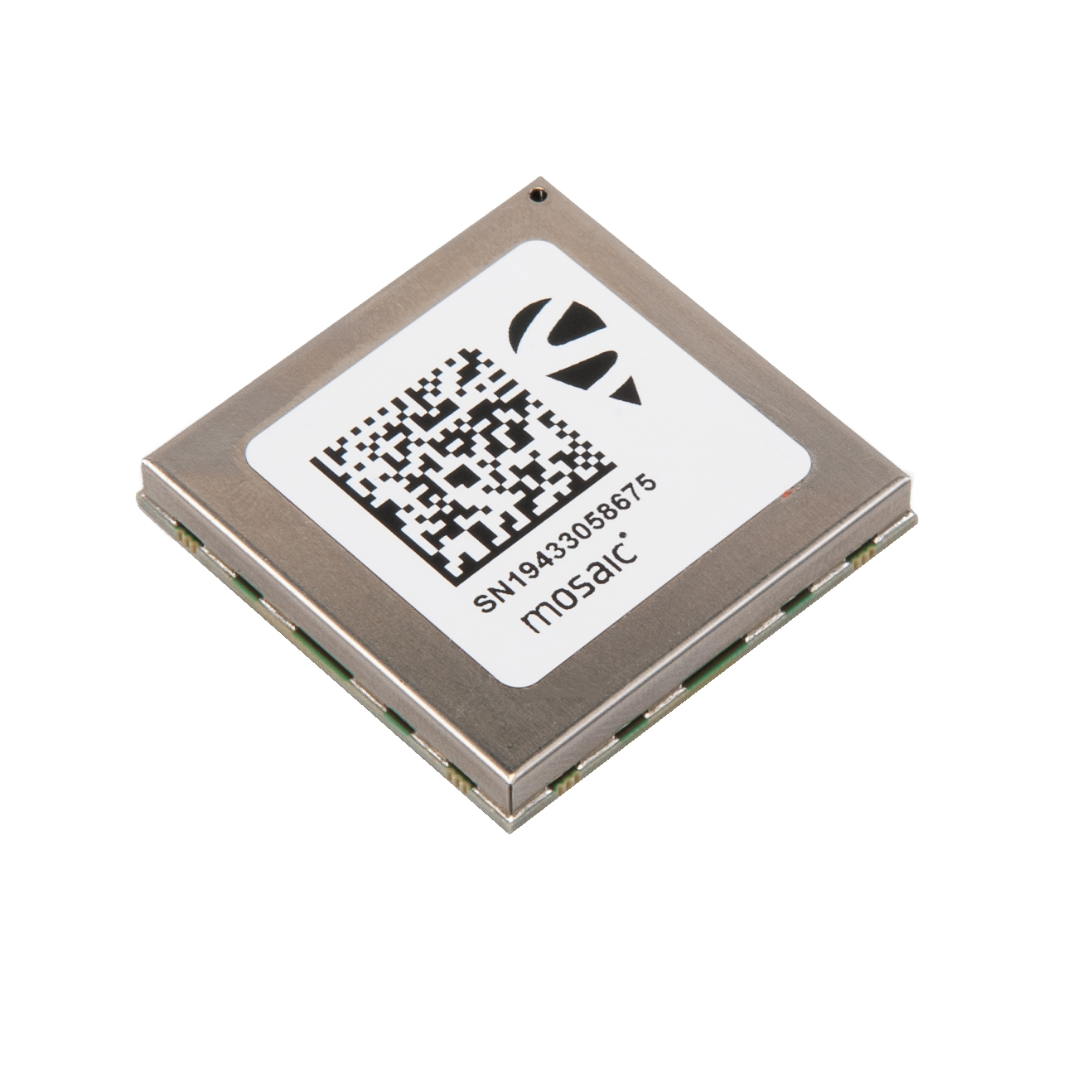

Septentrio mosaic-X5 is a multi-band, multi-constellation GNSS receiver in a low power surface mount module
with a wide array of interfaces, designed for mass market applications like robotics and autonomous systems,
capable of tracking all Global Navigation Satellite System (GNSS) constellations supporting current and future
signals.
With unique built-in AIM+ technology for interference mitigation, Septentrio is offering a performance benchmark
in mass market GNSS positioning building blocks.
Key features:
Update rate 100Hz
448 channels
Typical power consumption < 1W
mosaic-H (Heading), mosaic-CLAS (QZSS-CLAS) and mosaic-T (timing) are also available
・Products PDF（mosaic-x5 データシート）
