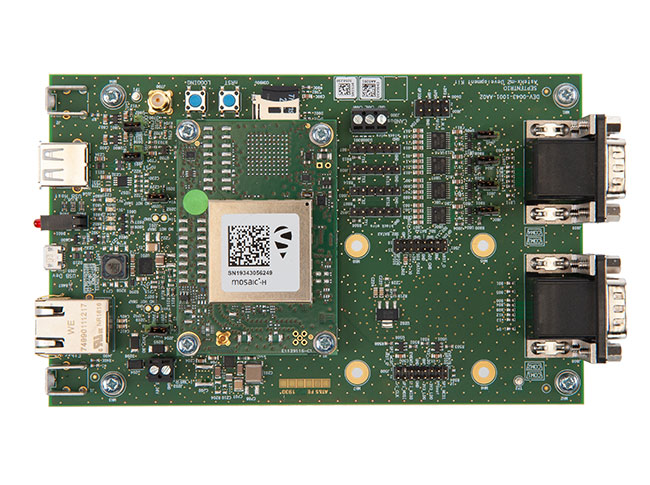

[mosaic-H Full DevKit]

Septentrio mosaic-H, is a compact high-precision GNSS RTK+heading module.
It’s a multi-band, multi-constellation GPS/GNSS receiver in a low power surface mount module. It is designed for mass market applications like UAV, robotics and autonomous systems, construction, agriculture among many other applications supporting all current and future GNSS satellite signals. Unique built-in AIM+ technology for interference monitoring and mitigation and anti-spoofing, ensures the best availability, reliability and precision.

The devkit exposes all interfaces of the mosaic-H and offers the possibility to discover and test the mosaic-H.
Create a prototype by integrating the mosaic-H evaluation kit into your system using any of the of following connections:
Ethernet, COM ports, USB 2.0, SD memory card.

Key features:
Update rate 100Hz, 20Hz for RTK + Attitude
448 channels
Typical power consumption < 1W

mosaic-x5 Full DevKit (RTK), mosaic-go Heading (dual antenna) are also available.
